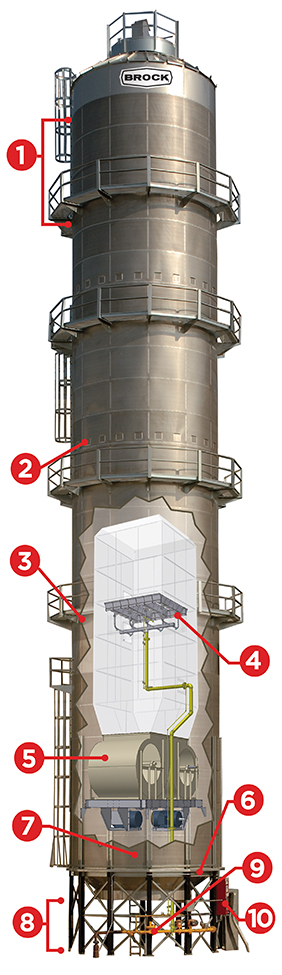

1 Narrower Columns At Top
Narrower width grain columns increase airflow on the wettest grain to start the drying process sooner.

2 MOISTURE EQUALIZER® System
Brock’s patented system transports grain faster on the inner portion of the column to minimize overdrying.

3 Self-Cleaning Plenum Floor
Unique floor recirculates fines back into the grain for safe operation and reduced cleaning maintenance.

4 Commercial Burner
A high-capacity, low-emission Maxon® burner is standard on BROCK® Commercial Tower Dryers.

5 DWDI Centrifugal Fans
Double-wide/double-inlet (DWDI) centrifugal fans deliver more air while using less horsepower.

6 Gentle Unloading System
Brock’s innovative and gentle Circular Drag Unloading System (patented) evenly meters and delivers the grain to a discharge point.

7 Unobstructed Grain Columns
Fresh air along with electrical conduits and gas piping enter at the bottom of the dryer and not through the grain columns.

8 Easy Access and Service
Ample clearance under the dryer offers easy walk-through access and generous space for auxiliary equipment.

9 Commercial Plumbing
Commercial block and bleed gas train is standard with high and low gas safety pressure switches.

10 TrueGrain™ Moisture Sensor System and INTUI-DRY® Dryer Control
Brock’s TrueGrain system uses Parallel Sensing Technology™ to accurately measure grain moisture. It works with the INTUI-DRY Controller to provide moisture-based dryer control and remote monitoring.

With many unique features and capacities from 2,500 to 10,000 bushels (63.5 to 250 metric tons) per hour, BROCK® Commercial Tower Dryers are your best choice for efficient grain drying.
